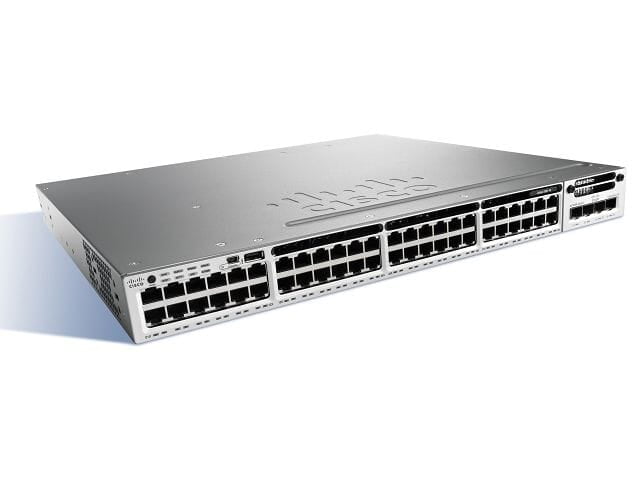

WS-C3850-48T-E

WS-C3850-48T-E Specification

model info:

WS-C3850-48T-E

enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000

Network management Interface

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

176Gbps

Maximum stacking number

up to 9 switches with same IOS feature set in same series

Stack Bandwidth

480Gbps

Forwarding Performance

130.95Mpps

FNF (Flexible NetFlow) entries

48,000 flows

Maximum VLANs IDs

4000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 40Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

● C3850-NM-4-1G: 4 x 1G uplinks network module
● C3850-NM-4-10G: 4 x 10G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking cable

●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-350WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone(in Watts)

127.24 (Max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.7 Inches (44.5 Cm)

Height

1.75 Inches (4.45 cm)

Weight

17.0 Pounds (7.7Kg)

Rack Mounting Kit

optional

 MTBF in hours

303,660

Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
●IEEE 802.3af and IEEE 802.3at
