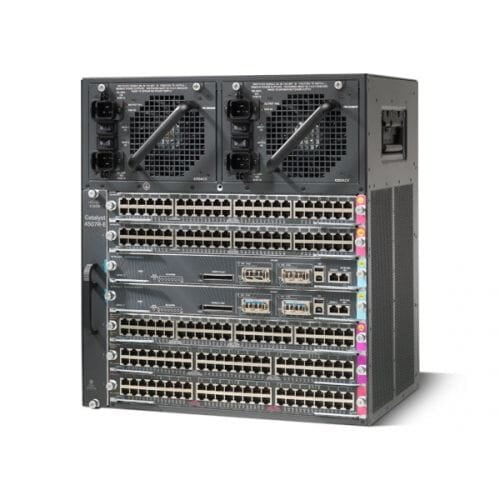

| WS-C4507R+E Specification |
|---|
| Manufacturer: | Cisco |
| Product ID: | WS-C4507R |
| Product Description: | Catalyst 4500 Chassis (7-Slot),fan, no p/s, Red Sup Capable |
| Product Type: | Ethernet Switch |
| I/O Expansions |
|---|
| Number of Total Expansion Slots: | 7 |
| Expansion Slot Type: | Supervisor Engine |
| Management & Protocols |
|---|
| Manageable: | Yes |
| Management: | - Network topology discovery and display services
- VLAN provisioning and logical display representation
- Traffic monitoring and performance assessment
- End-station tracking with search utilities
- CiscoView graphical device management
- Network topology integrity checking
- Cisco Discovery Protocol
- Cisco Virtual Trunking Protocol (VTP)
- Simple Network Management Protocol (SNMP) agent Version 1 (RFCs 1155-1157)
- SNMP Version 2c
- Cisco Workgroup Management Information Base (MIB)
- Ethernet MIB (RFC 1643)
- Ethernet Repeater MIB (RFC 1516)
- SNMP MIB II (RFC 1213)
- Remote Monitoring (RMON) (RFC 1757)
- Remote Monitoring II (RMON II) (RFC 2021)
- Interface Table (RFC 1573)
- Bridge MIB (RFC 1493)
- Switched Port Analyzer (SPAN)
- Enhanced Switched Port Analyzer (ESPAN)
- Port snooping and connection steering
- Standard Cisco IOS security capabilities: passwords and TACACS+
- Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access
|
| Power Description |
|---|
| Power Source: | Power Supply |
| Redundant Power Supply: | Yes |
| Physical Characteristics |
|---|
| Height: | 19.2" |
| Width: | 17.3" |
| Depth: | 12.5" |
| Weight (Approximate): | 107.00 lb |
| Miscellaneous |
|---|
| Additional Information: | Item Included:- Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)
Supervisor Engines Supported: - Supervisor Engines II-Plus
- Supervisor IV
- Slots 1 and 2 are reserved for Supervisor Engines only. Slots 3 and higher are reserved for line cards
Supervisor Engine Redundancy: - Yes (Supervisor Engine IV only)
- No Power Supply
Power supplies supported: - 1000-watt AC
- 2800-watt ACV
- 1300-watt ACV
- 1400-watt DC
|
| Certifications & Standards: | Safety:- UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260
EMC: - FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- EN 55022EN 55024
- EN 61000-6-1
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
- ETS 300 386
Industry EMC, Safety and Environmental Standards: - GR-63-Core NEBS Level 3
- GR-1089-Core Level 3
- ETS 300 019 Storage Class 1.1
- ETS 300 019 Transportation Class 2.3 (Pending)
- ETS 300 019 Stationary Use Class 3.1
- ETS 300 386
Telecom (E1): - CTR 12/13
- CTR 4
- ACA TS016
Telecom (T1): - FCC Part 68
- Canada CS-03
- JATE Green Book Ethernet:
- IEEE 802.3, 10BASE-T
Fast Ethernet: - IEEE 802.3u, 100BASE-TX
- IEEE 802.3, 100BASE-FX
Gigabit Ethernet: - IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3ab
1000BASE-X (GBIC): - 1000BASE-SX
- 1000BASE-LX/LH
- 1000BASE-ZX
Virtual LAN (VLAN) trunking/tagging: - IEEE 802.1Q
Spanning-Tree Protocol: - IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
Security: - IEEE 802.1
|
