WS-G5486=

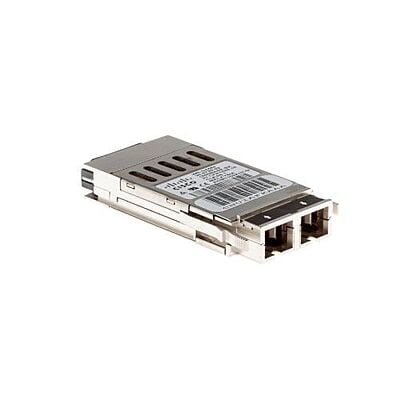

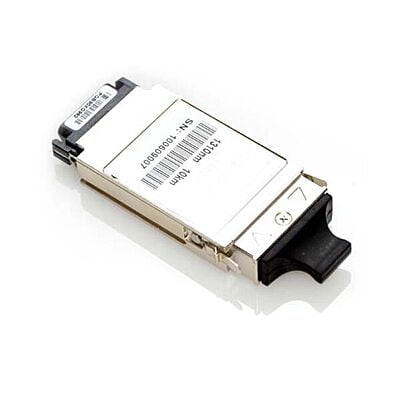

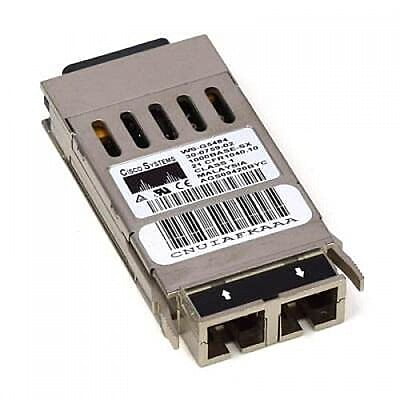

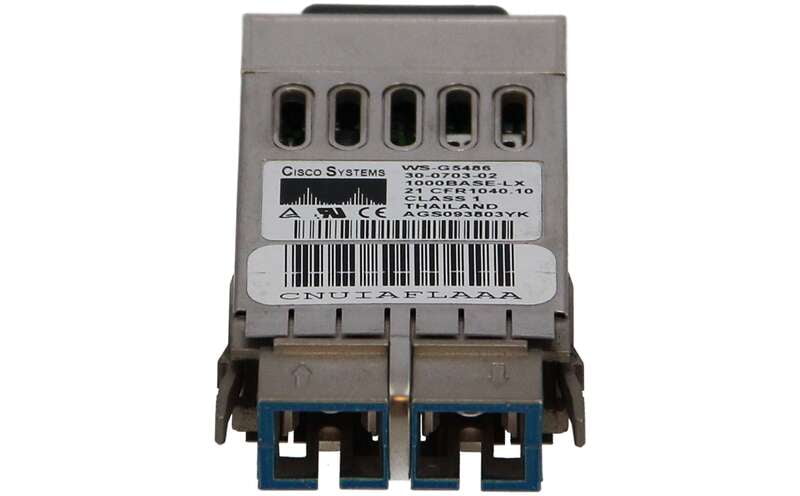

WS-G5486 1000BASE-LX/LH long haul GBIC (singlemode or multimode)
WS-G5486 Overview
The Cisco 1000BASE-T Gigabit Interface Converter (GBIC) is an ideal solution for Catalyst ® 6500, 4000, 3550, 2950, 3500 XL and 2900 XL Series switch customers, providing full duplex Gigabit Ethernet connectivity to high-end workstations and between wiring closets over existing copper network infrastructures. This GBIC technology leverages the industry’s flexible, standards-based 1000BASE-X design, allowing for a simple and low-cost migration path to Gigabit Ethernet. There are two key product applications for the Cisco 1000BASE-T GBIC: connectivity to high-end workstations and distribution and wiring closet interconnectivity.
The Cisco 1000BASE-LX/LH GBIC (WS-G5486) fully complies with the IEEE 802.3z 1000BASE-LX10 standard. It allows for reaches up to 6.2 miles (10 km) over single-mode fiber (SMF) and up to 550 meters over multimode fiber (MMF).
WS-G5486 Specification | |
Product Number | WS-G5486 |
Description | 1000BASE-LX/LH long haul GBIC (singlemode or multimode) |
GBIC | Cisco 1000BASE-LX/LH |
Wavelength (nm) | 1310 |
Fiber Type | MMF |
Core Size (Micron) | 62.5 50.0 50.0 |
Modal Bandwidth (MHz/km) | 500 400 500 |
Cable Distance | 1804 ft (550 m) 1804 ft (550 m) 1804 ft (550 m) |
