XF500006424
SAR10.00
Out of stock
Tags:

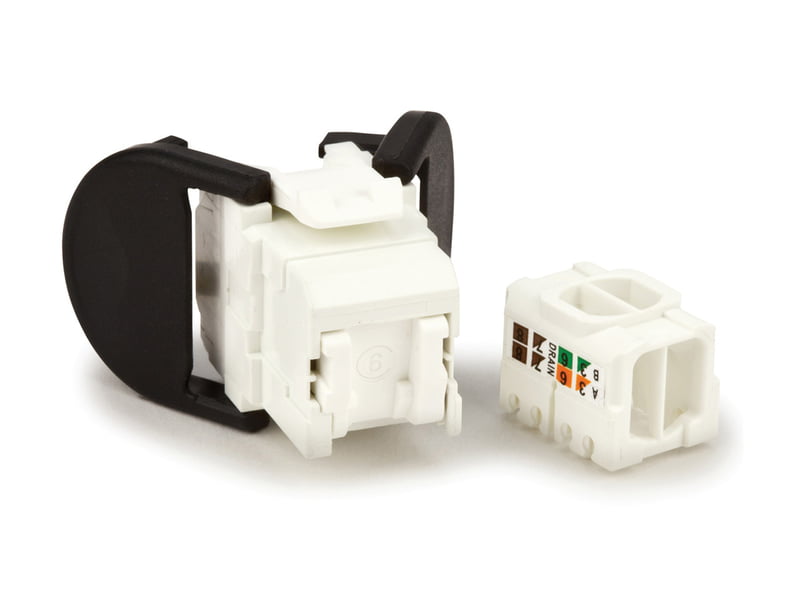

Our Cat.6 copper interconnect products work together to provide an easy-to-use solution for deploying high-speed connections throughout a building. The RJ45 jack is a key component in this system. These RJ45 jacks have been certified by an independent test laboratory to hardware certification. Each jack component is able to terminate to any certified Cat.6 TIA, ISO/IEC and EN standards for hardware performance, confirmed by independent laboratory certifications. The jack’s unique three cable entry p oints help make installation simple. The traditional one-click design enables an easy, tool-less termination on Cat. 6 U/ Unshielded twisted pair cables, meeting industry performance standards.
Product Details
Features
- Tool-less jack
- Easy and quick to install
- Reliable connection - The conductors are wired in a single operation
- Three cable entry points
- Less cable bending required - better compliance with minimum bend radius
- Enables a wide range of cable routinptions
- Easy to use in tight spaces
- Reusable - If a wiring mistake is made, same jack can be reused again
- No untwisting of pairs before termination
- Minimized stripping length - very limited pair untwist - pairs kept together
- Easy fitting of the rs without threading through a wire guide
- Clip-in mounting
- Jacks are designed to fit many other accessories on the market using the standard clip-in mounting
- Accepts solid and stranded conductors
- Compatible with many cables on the market
- Enablejack-to-plug" cables to be manufactured using stranded conductors
- Integral shutter
- Increased dust protection, especially during installation or in a dirty environment - No additional shuttering required on faceplates
- Hardware Performance
- Can be med and matched with other Hardware certified copper cable, patchcords and outlet
- IEEE 802.3bt-2018 performance (4PoE)
- Ready for new applications powered on 4 pairs up to 90W (960mA / Pair)
Specification Description
ISO/ IEC 11801 Edition 2. Arm 1-2, EN 50173-1 : 2011,ANSI/ TIA/ EIA-568-C.2-2009, ISO/IEC 60603-7-51:2010IEEE 802.3 1GBASE-T, IEEE 802.3at
